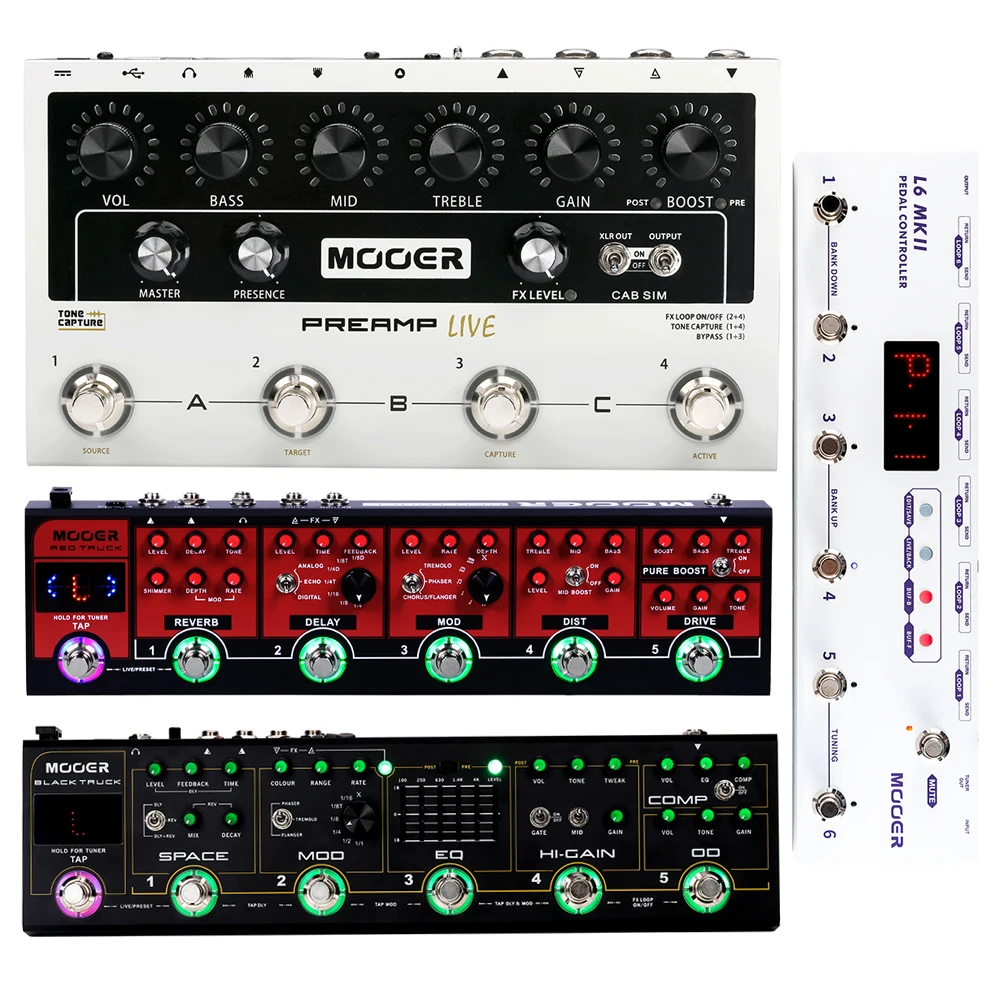

MOOER Guitar Multi-Effects Pedal Combined Effect Pedal PCL6 MKII Pedal Controller Programmable Guitar Parts & Accessories

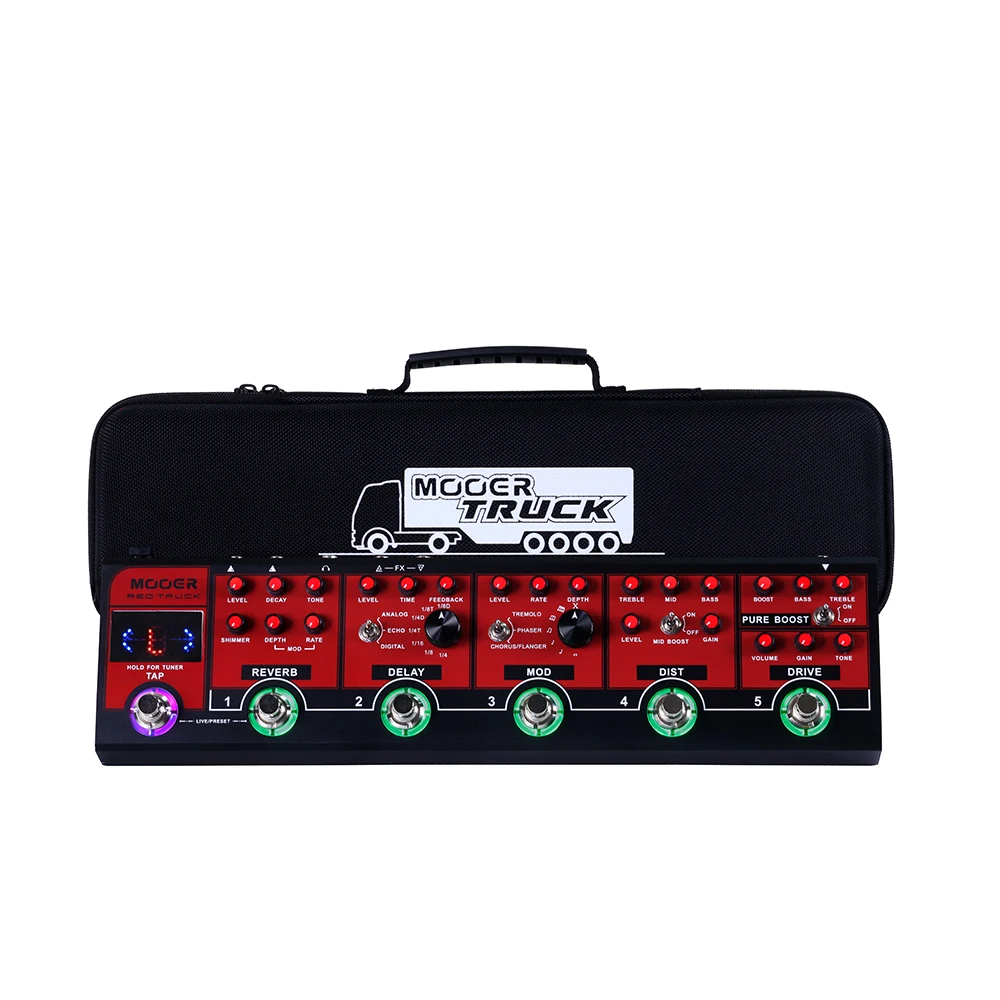

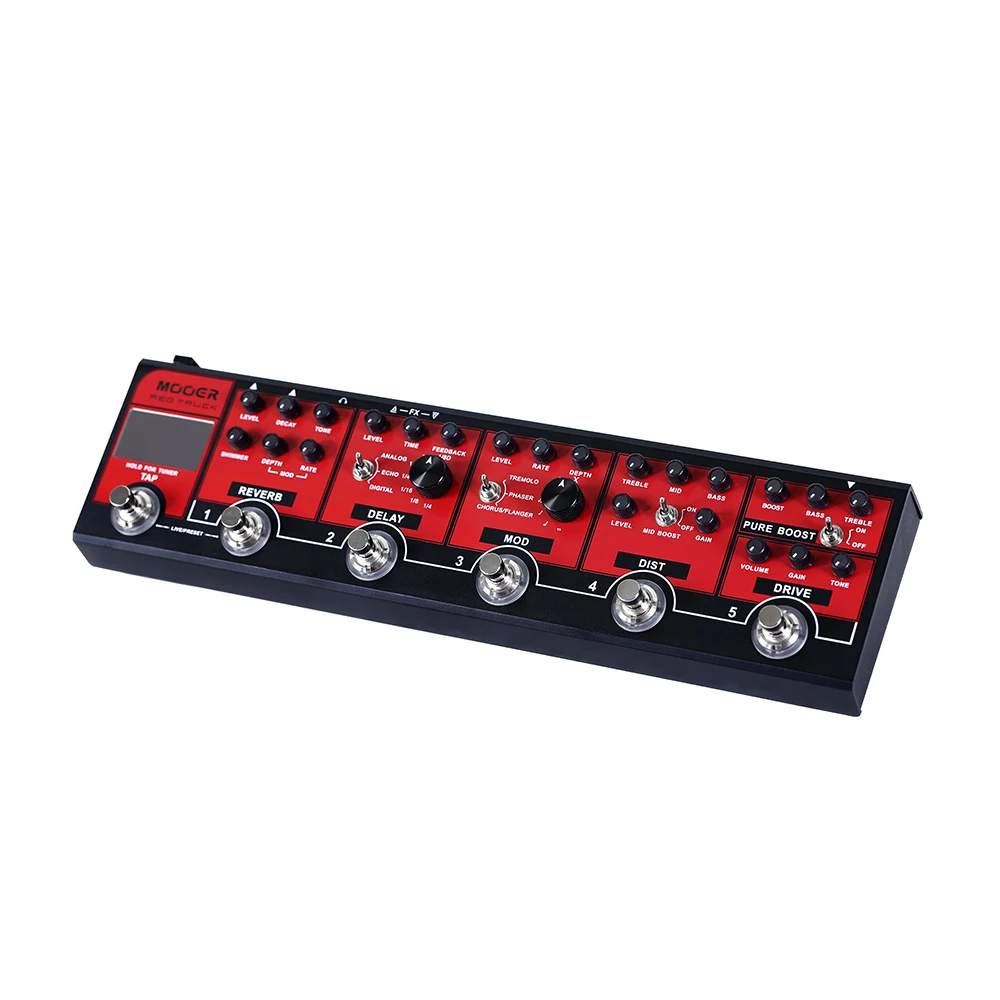

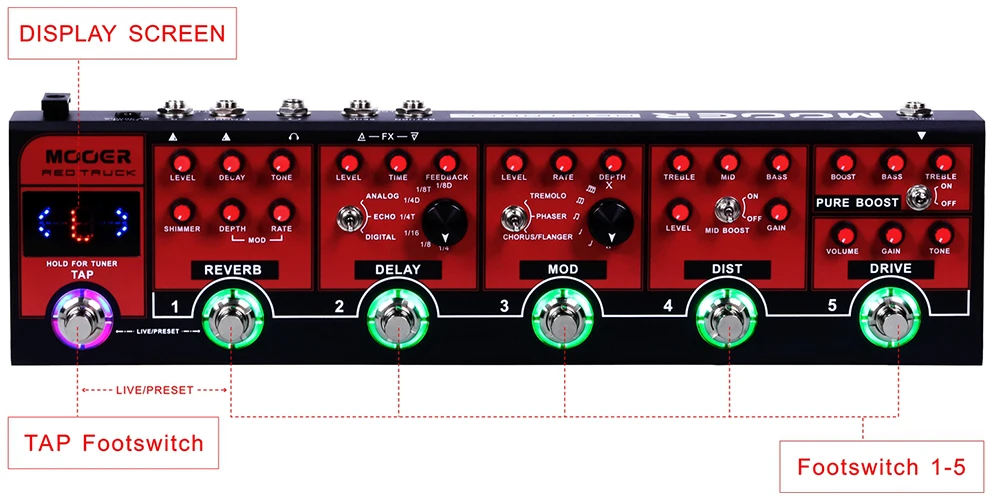

MOOER Red Truck Guitar Multi-Effects Pedal

Features:
6 effects pedals built into 1 simple unit. PURE BOOST, DRIVE, DIST, MOD, DELAY, REVERB
Full-featured controls for each effect
Built-in precision guitar tuner
Tap tempo synchronization

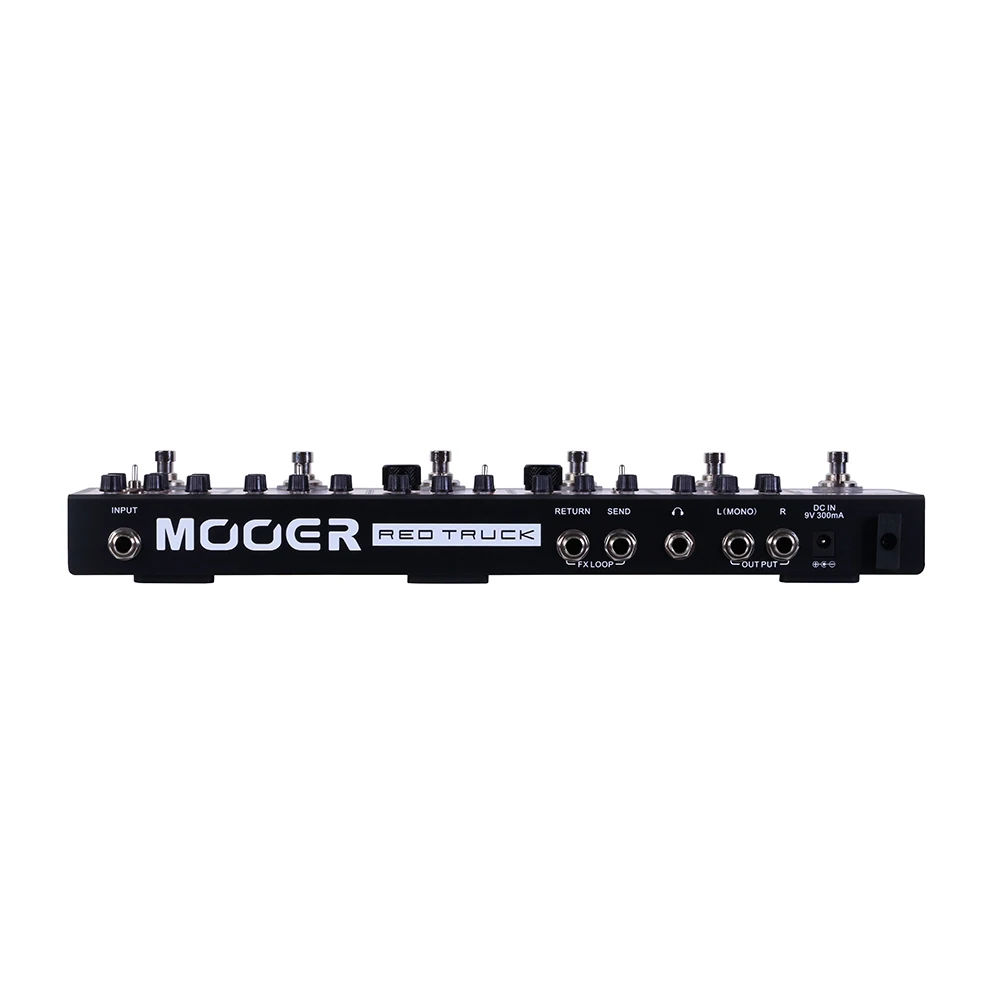

Integrated effects loop for connecting external pedals or 4 cable method connection with an amplifier
Stereo outputs
Dedicated direct output with speaker simulation and an independent volume
control for connection to a mixing desk, computer or headphones
Includes a carry case for easy transportation

Specification:
Input: 1/4′ signal input audio interface (impedance 2M ohms)
Output: 1/4 “left and right channel audio interface x2 (impedance 100 ohms)
Sampling rate: 44.1K
Sampling accuracy: 24bit
Power supply: DC 9V≥1A power adapter (negative inside positive)To avoid the issue of lack of current, 1A or higher current draw power supply is recommended.
Size: 370 mm (D) X 96 mm (W) X 51 mm (H)
Weight: 1200g

Packing List:
1 * Guitar Effect Pedal

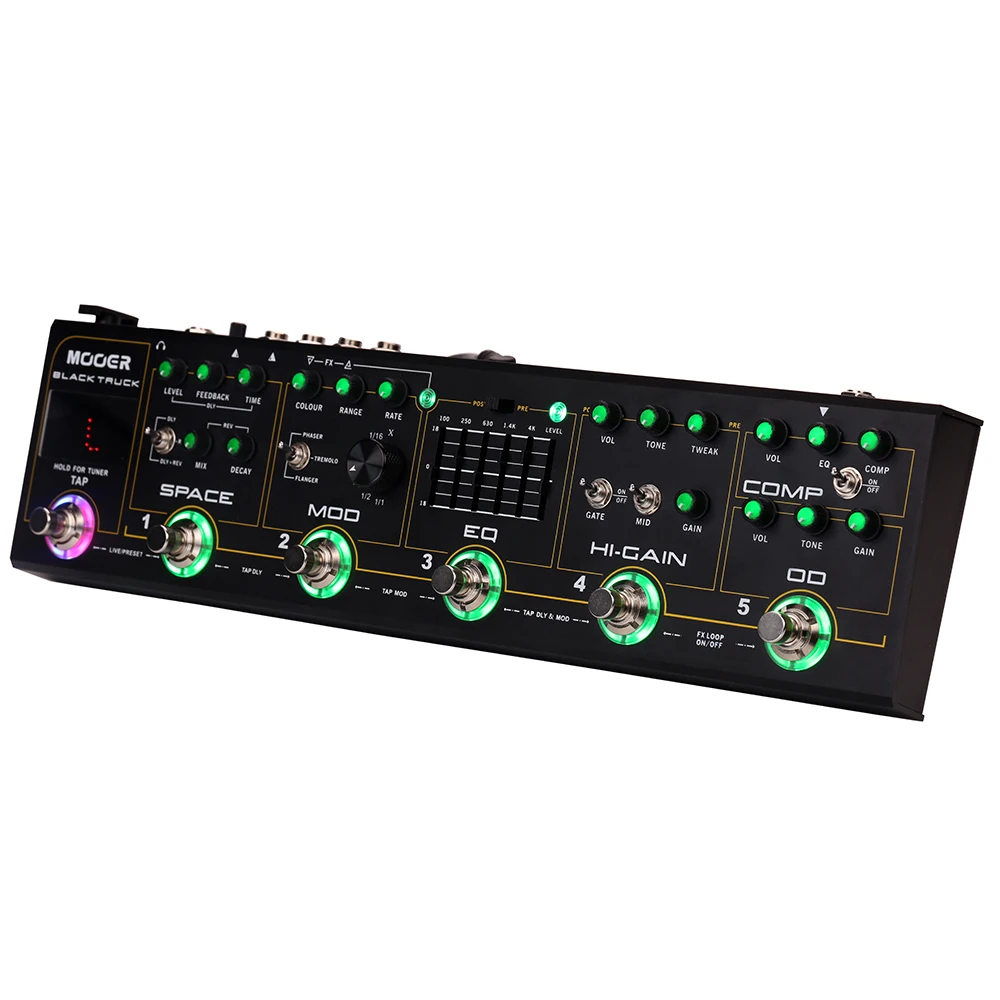

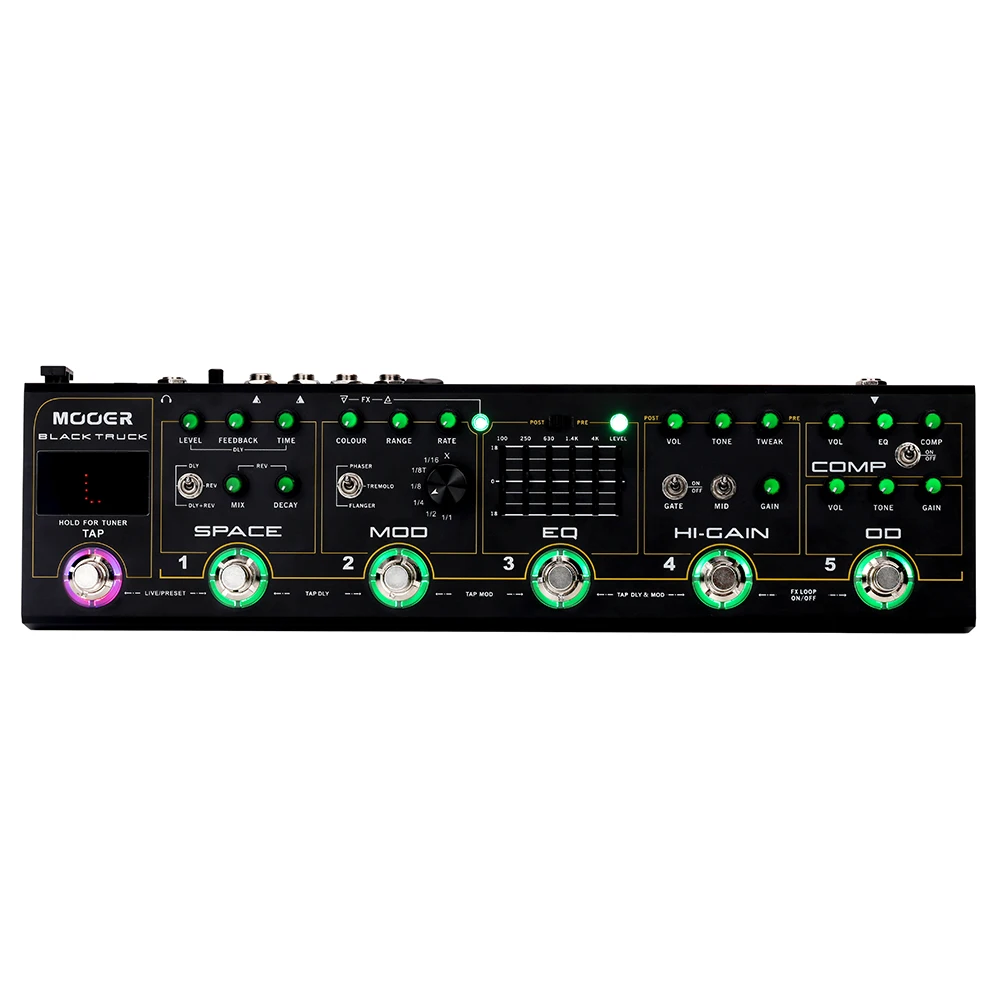

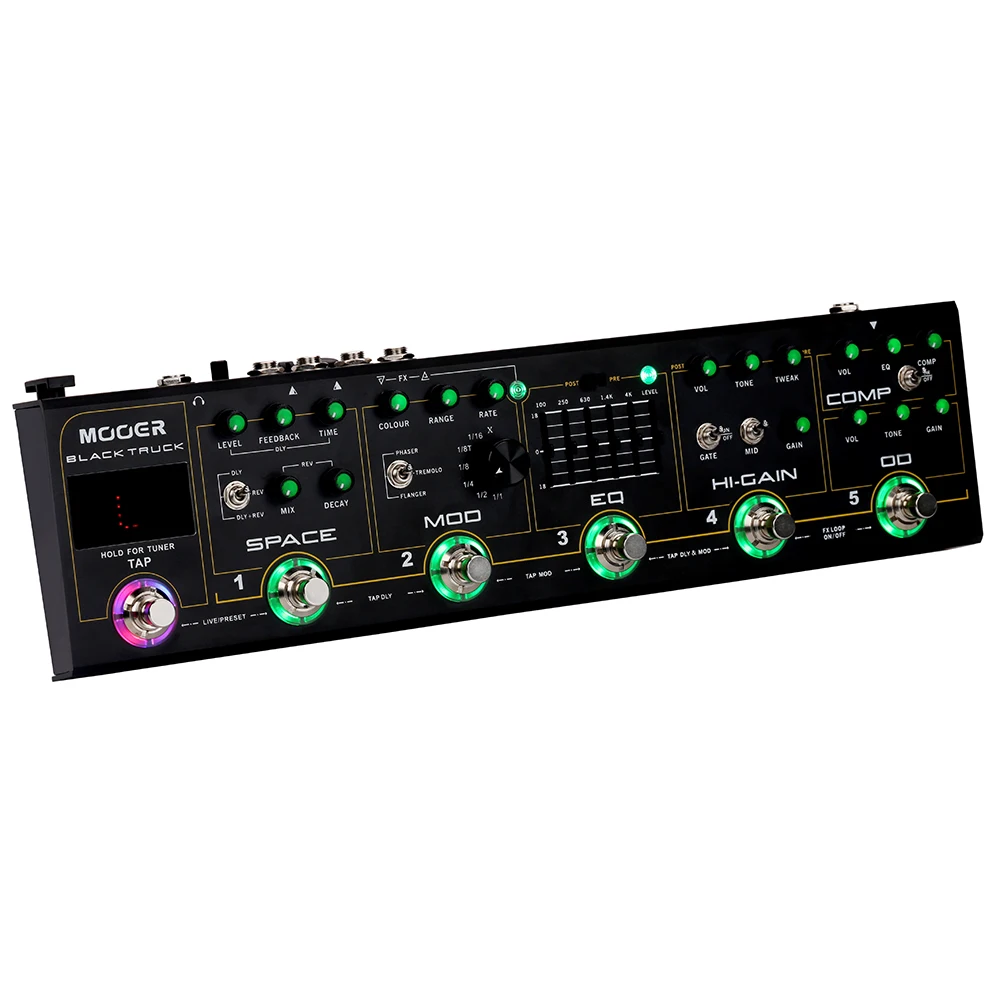

MOOER Black Truck Guitar Multi-Effects Pedal

Description
1. BLACK TRUCK adopts digital analog integration technology, and traditional analog circuit technology is used in modules such as COMP (compression), OD (overload), HI-GAIN (distortion), EQ (equalization), etc.
2. High quality digital voice based on the third generation digital platform technology of the Magic Ear is adopted in modules such as MOD (peripheral) and SPACE (reverberation&delay).
3. An EFFECT LOOP loop function with switchable switches is set between the main voice and surrounding voice, supporting users to add their favorite single blocks and inject new voice possibilities into BLACK TRUCK.
4. In addition to the “LIVE” (single block mode) of “what you see is what you get”, BLACK TURCK also has the “Preset” (preset mode) function, which can remember your effect module switch settings like a programmable line selector, making it convenient for voice switching during performances.

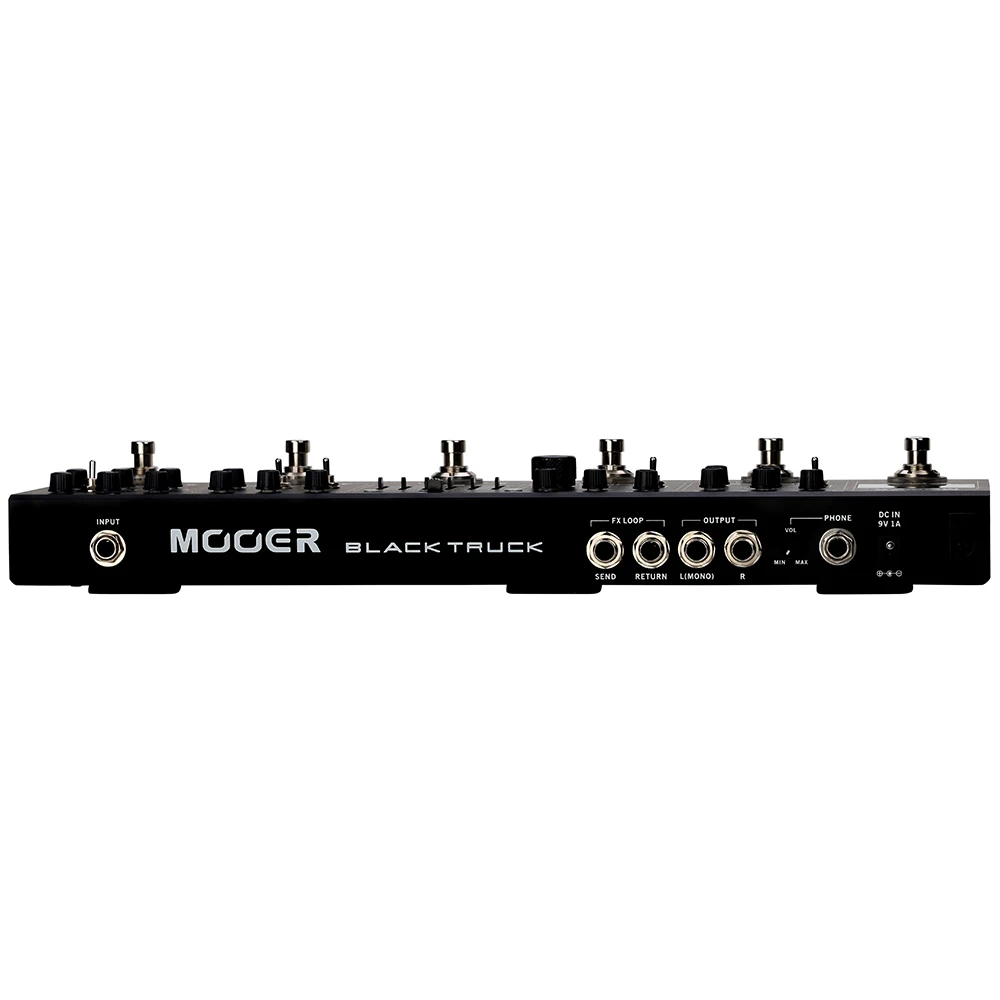

5. BLACK TRUCK also supports stereo output, as well as adjustable volume and built-in IR box analog headphone output port, which can adapt to various performance environments.

Specifications
Input: 1/4 ‘signal input audio interface (impedance 2M ohms)
Output: 1/4 ‘left and right channel audio interface x 2 (impedance 100 ohms)
Earphone: 1/8 “stereo interface X1 (50 Ω)
Sampling rate: 44.1K
Sampling accuracy: 24bit
Power supply: DC 9V ≥ 1000mA power adapter ()
Size: 370 mm (D) X 96 mm (W) X 51 mm (H)
Weight: 1300g

Packing List:
1 * Guitar Effect Pedal

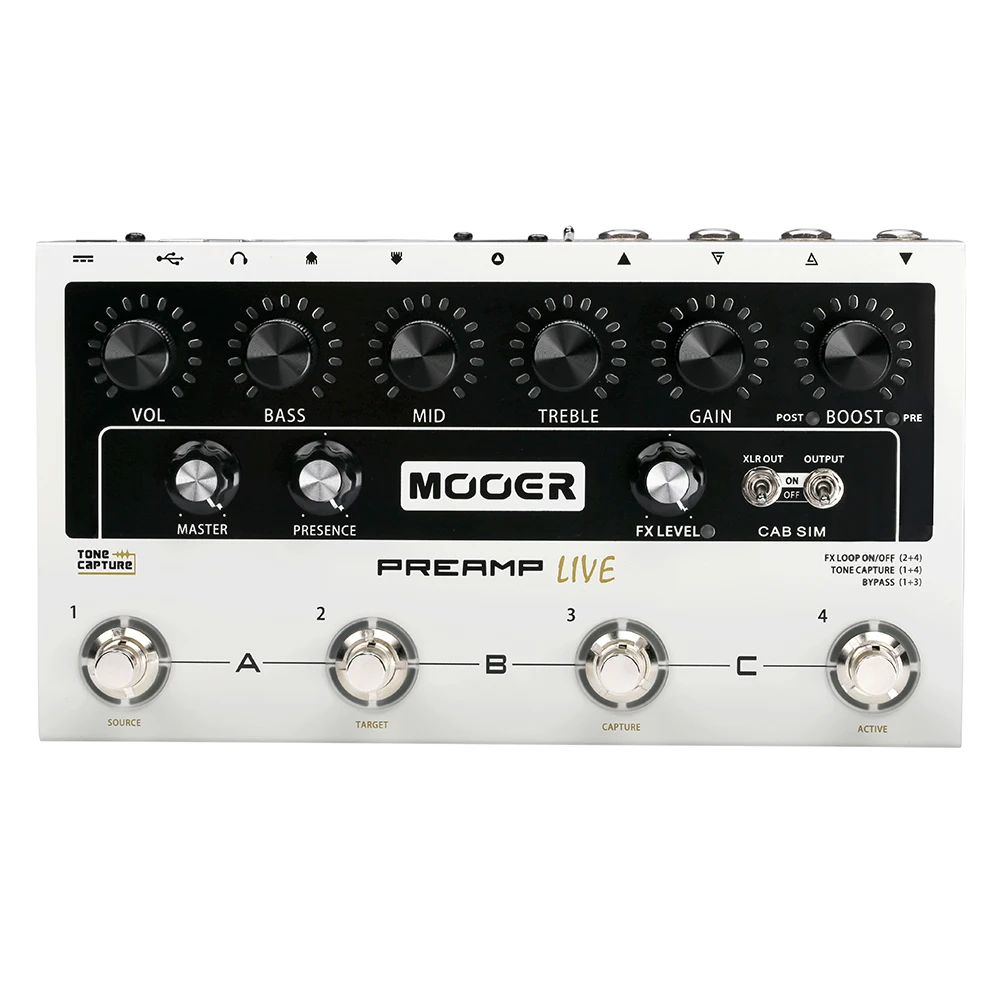

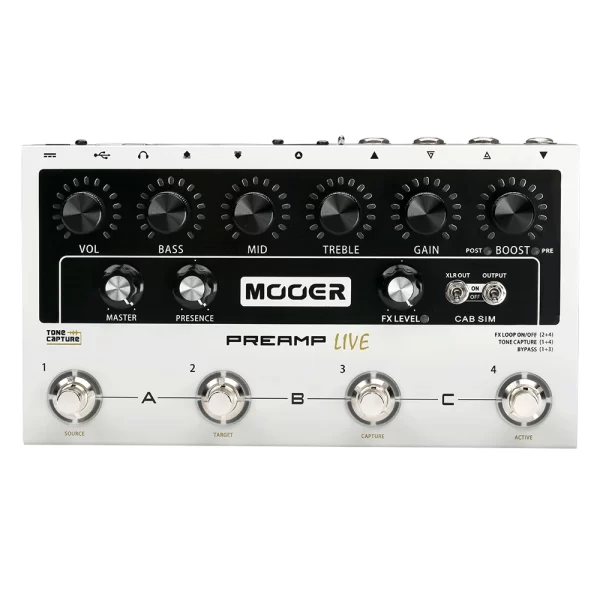

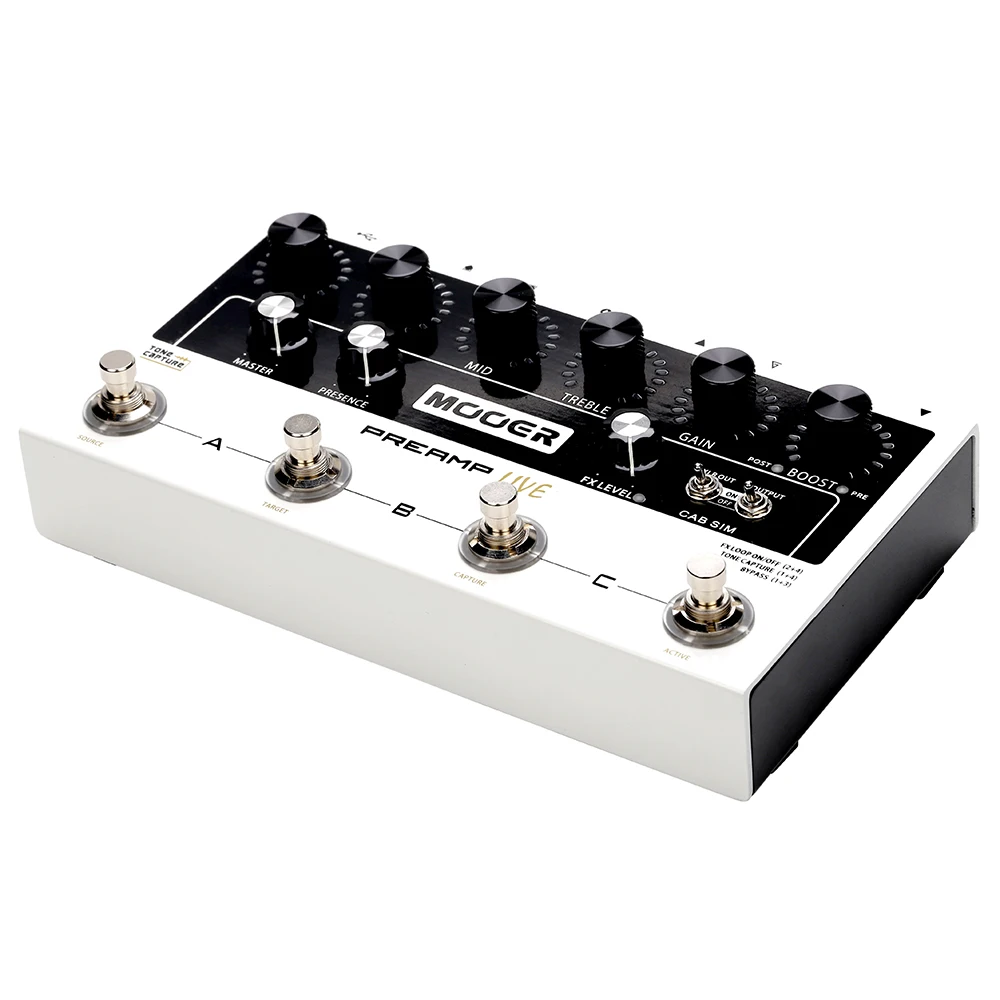

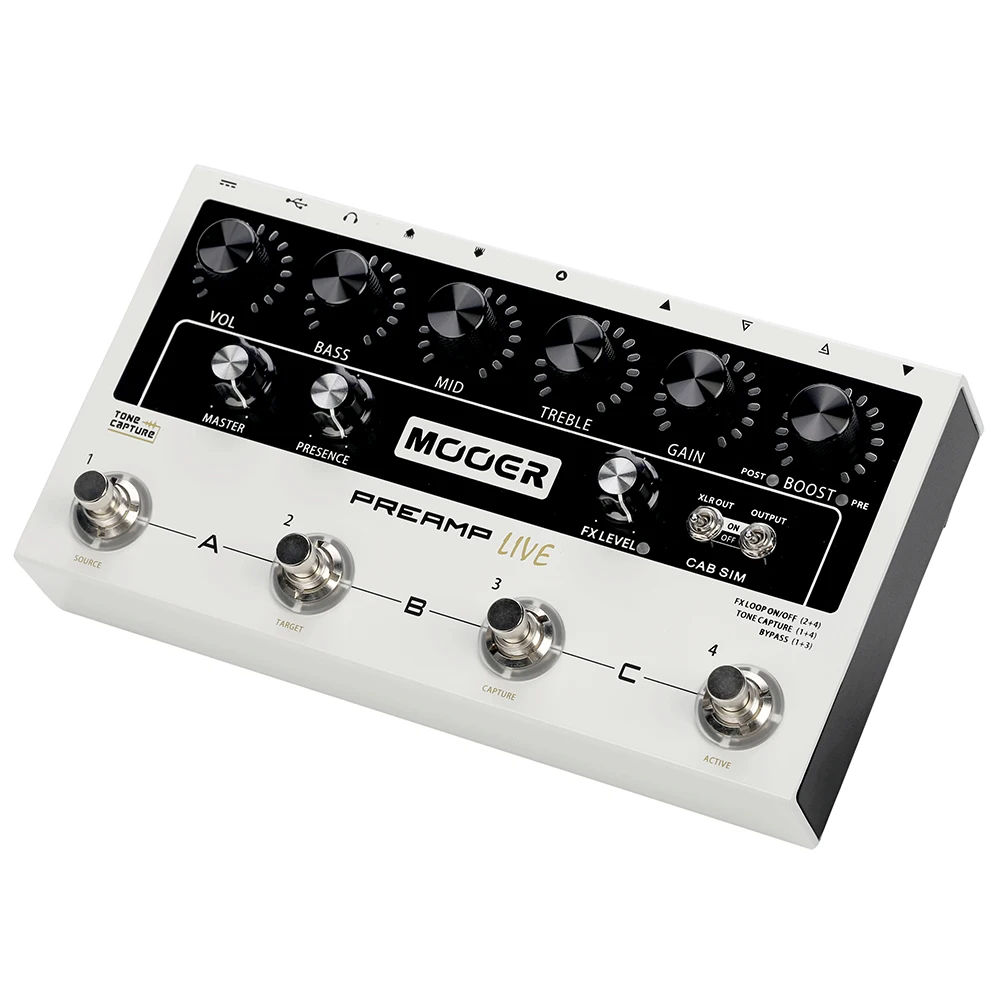

Digital Preamp Live Guitar Effect Pedal

Features
Contains 12 independent preamp channels with intuitive, familiar switching controls
Pre/Post BOOSTER and adjustable Pre/Post noise gates for each channel
Easily accessible global controls for fast setup in different live situations
Optional independent speaker cab sim for each output
IR loading via the supporting software and mobile apps
Fully programmable effects loop with serial and A/B modes. For use with external effects or combining with your head/combo’s own preamp using the 4-cable method

* TONE CAPTURE for sampling your real amplifiers tonal characteristics and creating new digital preamp models
* Dedicated headphone output for use as a stand-alone practice unit
* Fully mappable MIDI IN and MIDI OUT for integration with other equipment
* USB and Bluetooth for connecting to PC, MAC and MOBILE APP for deep editing and amp selection

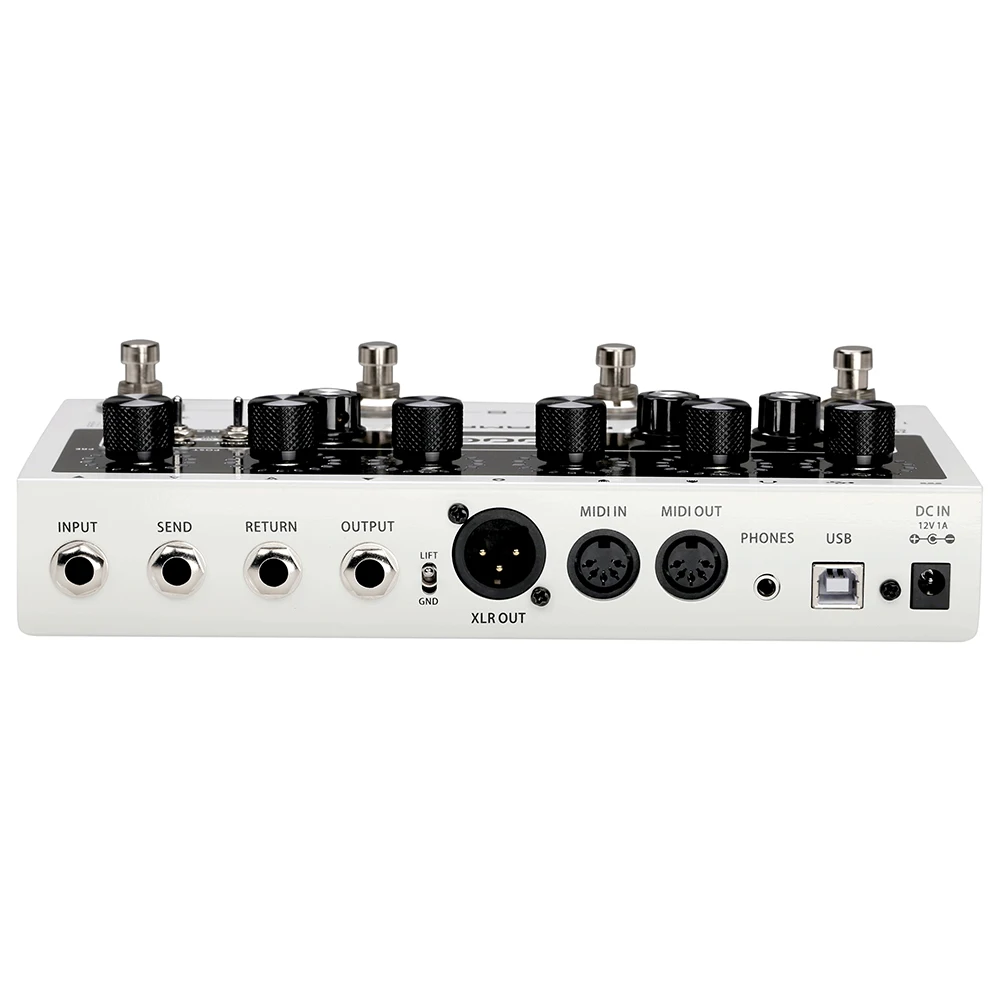

Specification:
Preamp Channels: 12
Input: 1/4” mono audio jack (impedance 500k)
Outputs: 1 x 1/4” mono audio jack (impedance100Ω)
Effects Send: 1/4” mono audio jack (impedance100Ω)
Effects Return: 1/4” mono audio jack (impedance 500k)
USB: Type-B Female Connector
Sampling accuracy: 24bit
Signal to noise ratio: 103dB
Effects Loop: Mode 1 Serial ~ Mode 2 A/B
MIDI IN & OUT: 5 pin DIN connector
Sampling rate: 88.2KHz
Power requirements: 9V-12V DC 1
Format: .WAV
Sampling rate: 44.1KHz
Sampling accuracy: 24bit
Max sample length: 23.2ms/1024 Points

Packing List:
1 * Guitar Effect Pedal

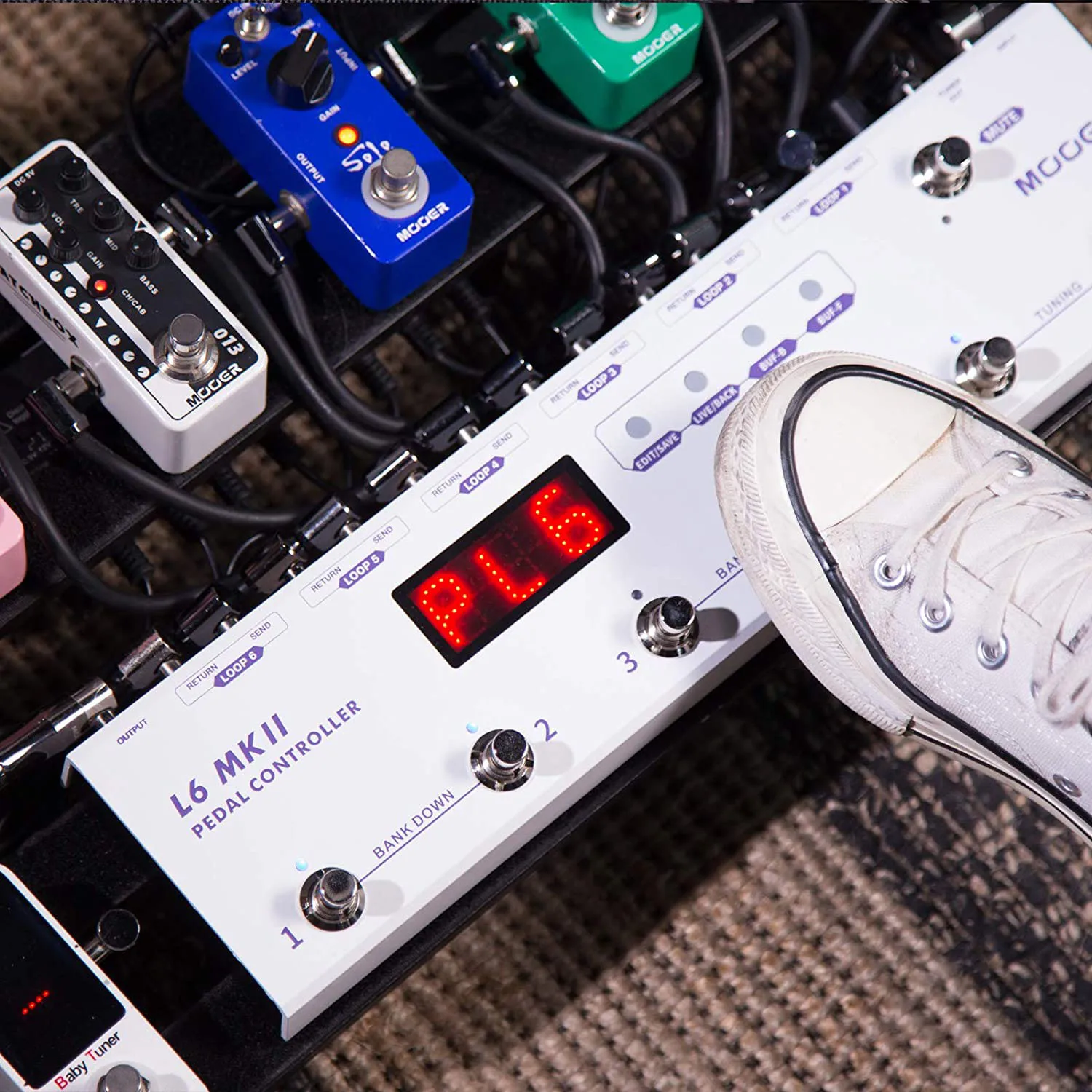

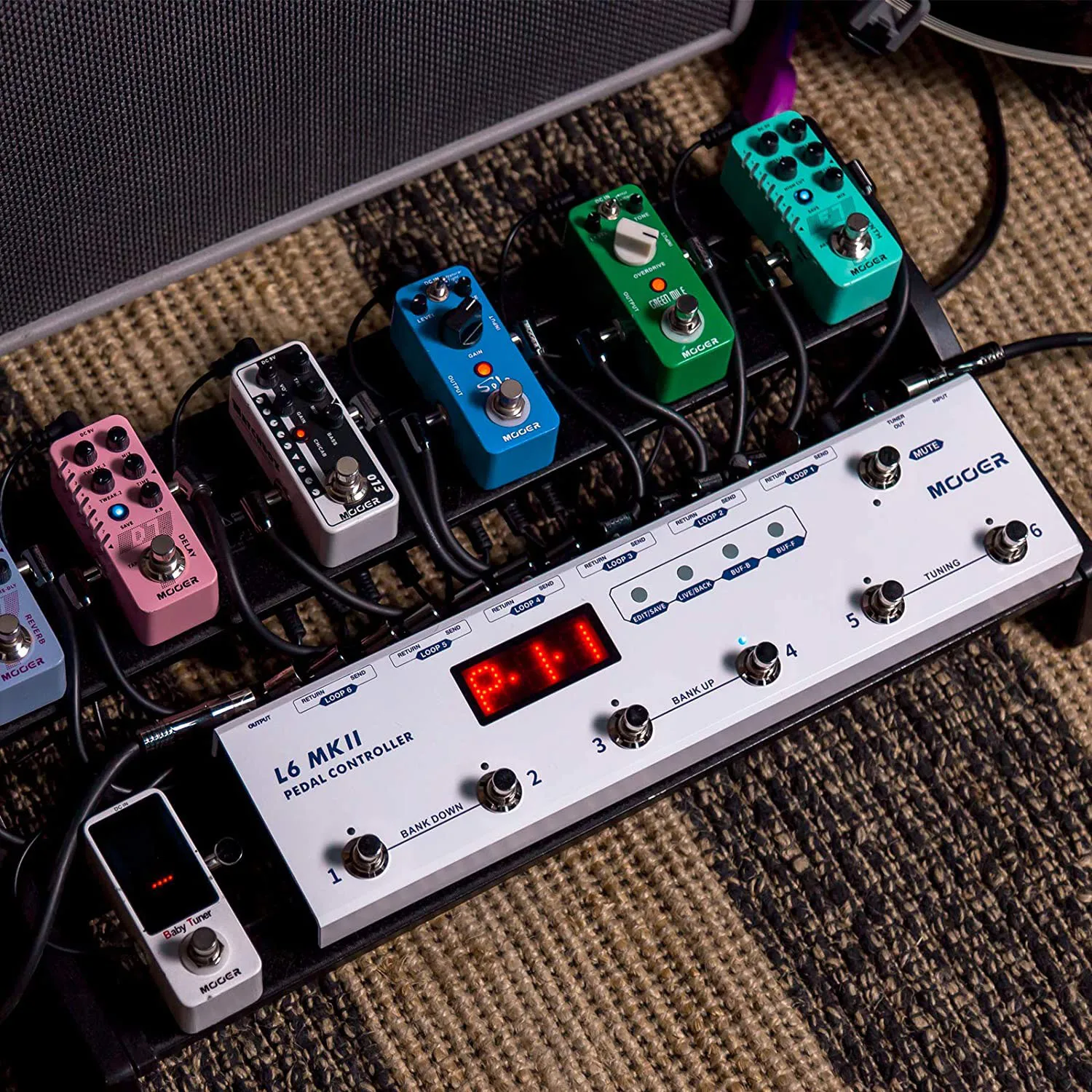

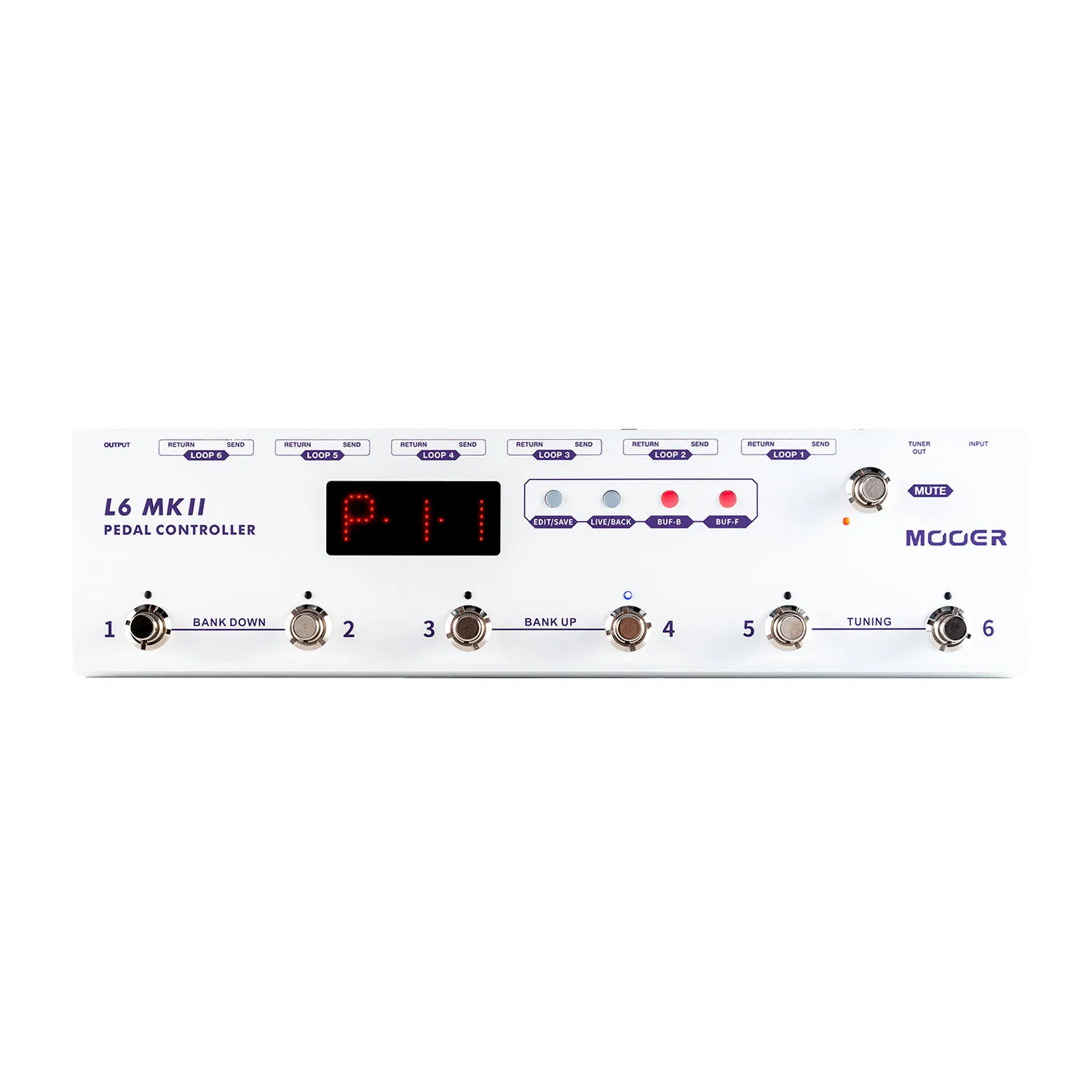

MOOER PCL6 MKII Pedal Controller

Features:
· Programmable loop switcher with 6 loops.

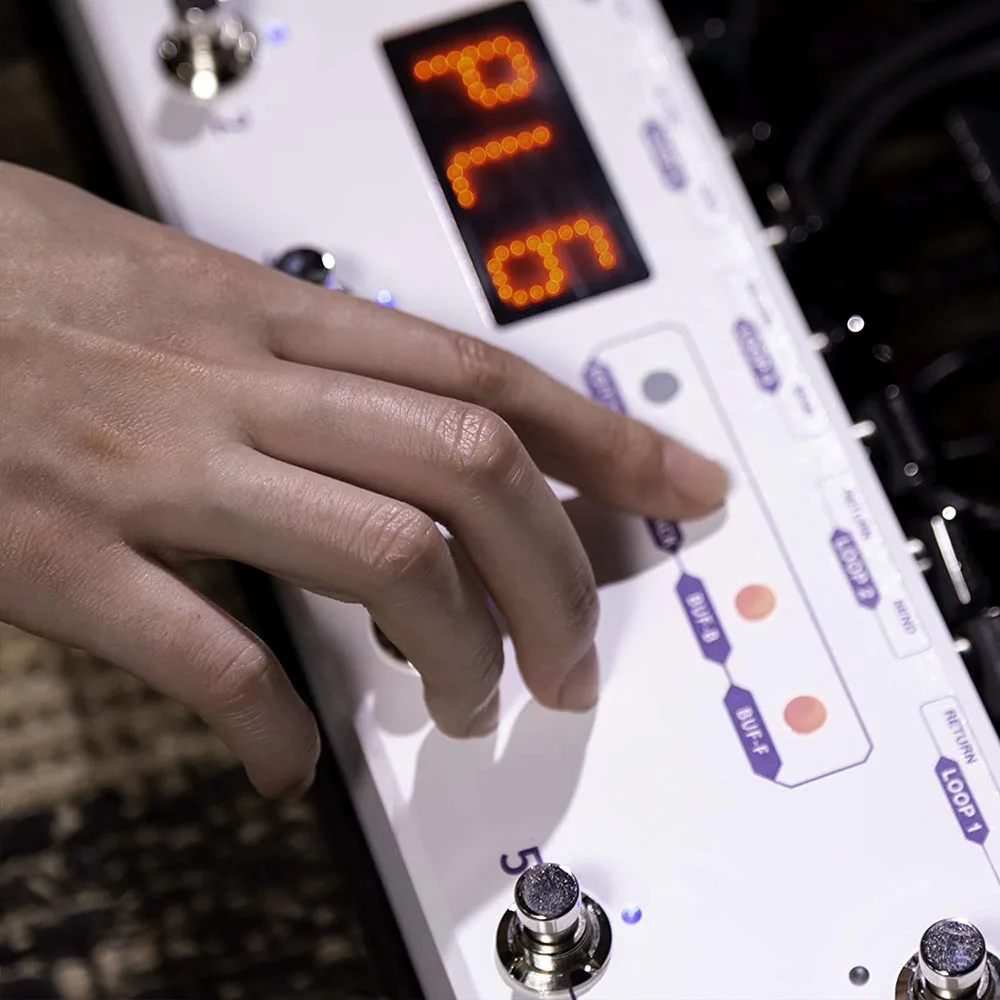

· The L6 MKII has a pre-position buffer (BUF-F) and post-position buffer (BUF-B) available for activation which will minimize signal attenuation and result in minimum tone loss in the guitar signal.
· Two modes of operation: PLAY mode and LIVE mode. This allows the user the option of utilizing the footswitches to recall up to 36 saved presets or activate pedal loops individually in a traditional manor.
· Footswitch LED for each loop make it fast and easy to see which loops are activated.· Dedicated MUTE footswitch.
· Includes built-in tuner and supports external tuner.

Specifications:
Input:1/4″monaural jack(impedance:2M Ohms)
Output:1/4″monaural jack(impedance:100M Ohms)
Power Requirments:AC adapter 9V DC(center minus plug).
MOOER Power Supply is recommended
Current Draw:350mA
Dimensions: 370mm(D)*97mm(W)*33mm(H)
Weights: 1.05KG

Packing List:
1 * Guitar Effect Pedal
